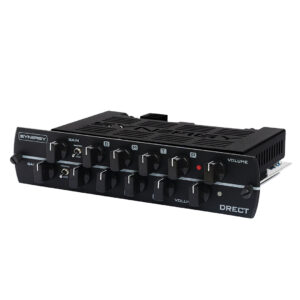

Synergy Drect Preamp SYN-20IR Bundle

All-Tube Head - 20 Watts - 3-Channel Preamp Module Platform Amp - IR Equipped

Each all-tube, two-channel module is equipped with dual 12AX7s and features the exact preamp circuitry as the legendary amplifier it is based on. In most cases the SYNERGY module offers more features in comparison to the amp itself. The Synergy engineering team painstakingly works with each brand partner to design modules that achieve the most accurate tonal representation of their famous amplifier model.

Brought to life by a 20-watt EL84 power section, the SYN-20IR is ideal for at home, in the studio, onstage, or at rehearsal. The SYN-20IR is packed with features to satisfy today’s demanding players including onboard impulse response (IR) technology with latency less than 1ms, selectable Power Amp Structure, silent playing, XLR DI and Headphone outputs and fully MIDI capability.

DUAL CHANNEL ALL-TUBE

The Synergy DRECT module meticulously captures the game-changing character of this Rev C amplifier by faithfully reproducing the signature girth and articulation that's graced numerous hard rock and metal classics. Adding even more flexibility than the original amp, this module allows you to set each channel to be either Orange or Red. For those craving the powerful tones of Metallica, 311, Linkin Park, Korn, Soundgarden and many more, the Synergy DRECT preamp module is your gateway to that iconic rectified sound.

CATHODE SELECT SWITCH:

The DRECT module features a three-position switch on the PCB which allows you to configure the input tube bass response to match the original circuit of the selected module. This will affect the feel and tightness. Each amp designer has a specific combination of components that makes up their input tube circuit. We have selected the three most popular combinations which you can access with this switch. The USA voiced modules typically use setting 1 (1.5K resistor and 22uf capacitor). British style modules use position 2 (2.7K resistor and .68uf capacitor) and modules like the SOLDANO and VAI modules are set to position 3. Of course, you can experiment and try any of the positions to see what you prefer. The modules will come preset to the preferred setting which for the DRECT module is position 3 (1.8K resistor and 1uf capacitor).

DUAL<>SINGLE SLIDE SWITCH:

The DRECT module features a secondary switch allowing the new Synergy modules to be used in older single channel Egnater and Randall modular amps/preamps that do not accept the dual channel modules. This allows access to either of the module channels when that slot is turned on. You will still not be able to switch between the two channels due to the limitations of the older hardware. You can set it so either module channel one or module channel two will turn on when the slot is selected. Set to Dual when using the module in units that have the switching circuit to access both modules. If you are using a single channel only amp/preamp, setting to DUAL will make the bottom module channel active. Set to Single will cause the top channel of the module to come on when selected.

Synergy hardware and interchangeable preamps are protected under US patent.
