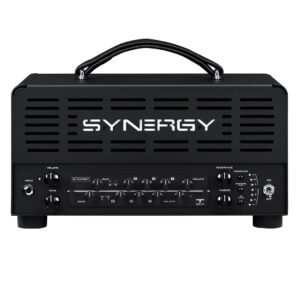

TDLX Preamp SYN-20IR Bundle

All-Tube Head - 20 Watts - 3-Channel Preamp Module Platform Amp - IR Equipped

Each all-tube, two-channel module is equipped with dual 12AX7s and features the exact preamp circuitry as the legendary amplifier it is based on. In most cases the SYNERGY module offers more features in comparison to the amp itself. The Synergy engineering team painstakingly works with each brand partner to design modules that achieve the most accurate tonal representation of their famous amplifier model.

Brought to life by a 20-watt EL84 power section, the SYN-20IR is ideal for at home, in the studio, onstage, or at rehearsal. The SYN-20IR is packed with features to satisfy today’s demanding players including onboard impulse response (IR) technology with latency less than 1ms, selectable Power Amp Structure, silent playing, XLR DI and Headphone outputs and fully MIDI capability.

INTERCHANGEABLE PRE-AMP

No list of electric guitar amp tones is complete without the sounds you’ll enjoy from your Synergy T/DLX preamp. Carefully crafted to elicit the pure tones of two of California’s most iconic guitar amps, the T/DLX preamp may well be your go-to clean and vintage-voiced tonal solution. On one channel you’ll find the high-headroom clean tones that are also ideal as a pedal platform. Dial up the gain on the second channel and you’ll be greeted with real tube driven breakup and sag that makes those luxury 1 x 12” combos so inspiring. To ensure the T/DLX preamp sounds terrific though your rig, we even included bright and tight switches, which change the tone’s character to nail the sound you’re looking for. No matter what version of 1960s California tone you crave, you’ll find it in the Synergy T/DLX Preamp.

The Synergy T/DLX features two totally separate channels. Each channel features gain, volume and 3 band knobs as well as three position tight and bright switches.

CATHODE SELECT SWITCH:

The T/DLX module features a three position switch allows you to configure the input tube bass response to match the original circuit of the selected module (patent pending). This will affect the feel and tightness. Each amp designer has a specific combination of components that makes up their input tube circuit. We have selected the three most popular combinations which you can access with this switch. The modules will come preset to the same setting as Fender Twin / Deluxe, which for the T/DLX module is position 1 ( 1.5K resistor and 22uf capacitor).

DUAL<>SINGLE SLIDE SWITCH:

The T/DLX module includes a switch used to allow the new Synergy modules to be used in older single channel Egnater and Randall modular amps/preamps that do not accept the dual channel modules. This allows access to either of the module channels when that slot is turned on. You will still not be able to switch between the two channels due to the limitations of the older hardware. You can set it so either module channel one or module channel two will turn on when the slot is selected. Set to Dual when using the module in units that have the switching circuit to access both modules. If you are using a single channel only amp/preamp, setting to DUAL will make the bottom module channel active. Set to Single will cause the top channel of the module to come on when selected.

Synergy hardware and interchangeable pre-amps are protected under US patent.
